Mangalore Roof Tiles

Mangalore Roof Tiles

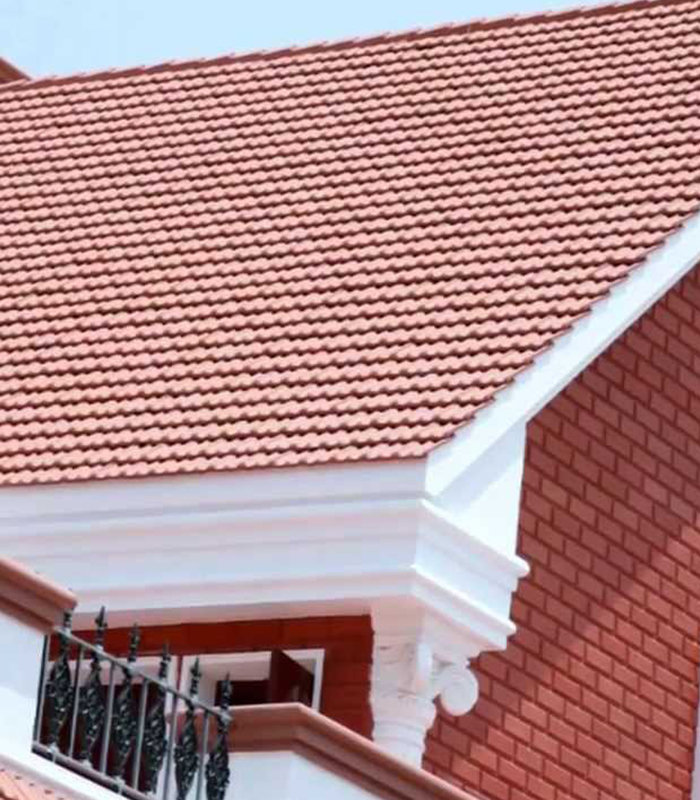

Mangalore tiles are a type of tile native to the city of Mangalore, India. The tiles were first introduced to India in 1860 by a German missionary. Since that time, the industry has flourished in India with these red tiles, prepared from hard laterite clay, in great demand throughout the country. They are exported to Myanmar, Sri Lanka, and the Far East and even as far as East Africa, the Middle East, Europe, and Australia. These were the only tiles recommended for government buildings in India under the British Raj.

They provide excellent ventilation especially during summer and aesthetically as well. Some of them are especially made to be placed over kitchen and bathroom for the smoke to escape. Over a period of time, these tiles become dark to black from constant exposure to soot and smoke. These red colored clay tiles, unique in shape and size are so famous and export to all the corners of world. They are unique and are made or available in different size and shapes depending on the users need.

These tiles are not only eco-friendly but also cheap, durable and costs only one third that of cement. Some of the buildings which are 100 yrs old still have tile roofing.These tiles are suited for regions experiencing heavy rainfall as water drains easily and fast. The Mangalore tiles are generally placed at forty five degree slant. The tiles get their robust red colour due to the high proportion of iron compound found in the laterite clay. A tile weighs about 2 kilograms (4.4 lb) to 3 kilograms (6.6 lb).

Mangalore Roof Tiles - Single Groove

Single Groove is the oldest and most commonly used tiles. This can be used as decorative tiles over RCC slop roofs. Where there is a concrete roof to protect from small water dripping. This is the tile which is used over the metal or wooden fabricated roof

Mangalore Roof Tiles - Double Groove

This is the locking system on the roof tiles, the tile to tile linking is better on a Double groove roof tile than the Single groove roof tiles. This is the tile which is used over the metal or wooden fabricated roof. Because of the better interlocking, the chances of leakage is lesser compared to the single groove roof tiles.

Difference Between Single and Double Groove

This is the locking system on the roof tiles, the tile to tile linking is better on a Double groove roof tile than the Single groove roof tiles. This is the tile which is used over the metal or wooden fabricated roof. Because of the better interlocking, the chances of leakage is lesser compared to the single groove roof tiles.

Inches Req per Sqft
16 x 10 1.3 No's
12 x 8 1.9 No's
10 x 7 2.2 No's
9 x 6 2.9 No's
8 x 5 4.8 No's

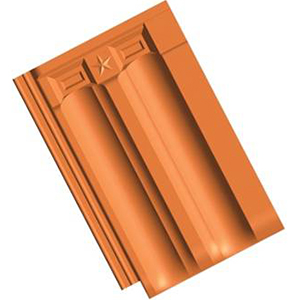

Mangalore Double Groove
Size : 12X8 inches
Area Coverage : 1.9 No's / Sqft
Weight : 1.6 kg

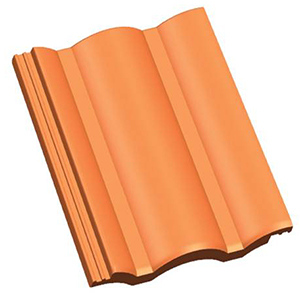

Elabana
Size : 12X10 inches
Area Coverage : 1.45 No's / Sqft
Weight : 2 kg

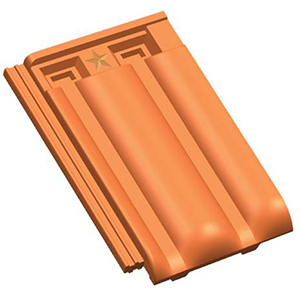

Penta
Size : 12X8 inches
Area Coverage : 1.9 No's / Sqft
Weight : 1.6 kg

Size : 8x5 / 9x6 / 10X7 / 16 / 9 inches

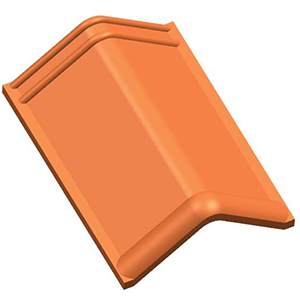

Model : Ridge

Size : 8x5 / 9x6 / 10X7 / 16 / 9 inches

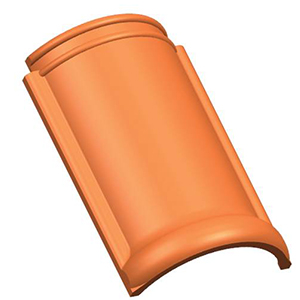

Model : Round Ridge
